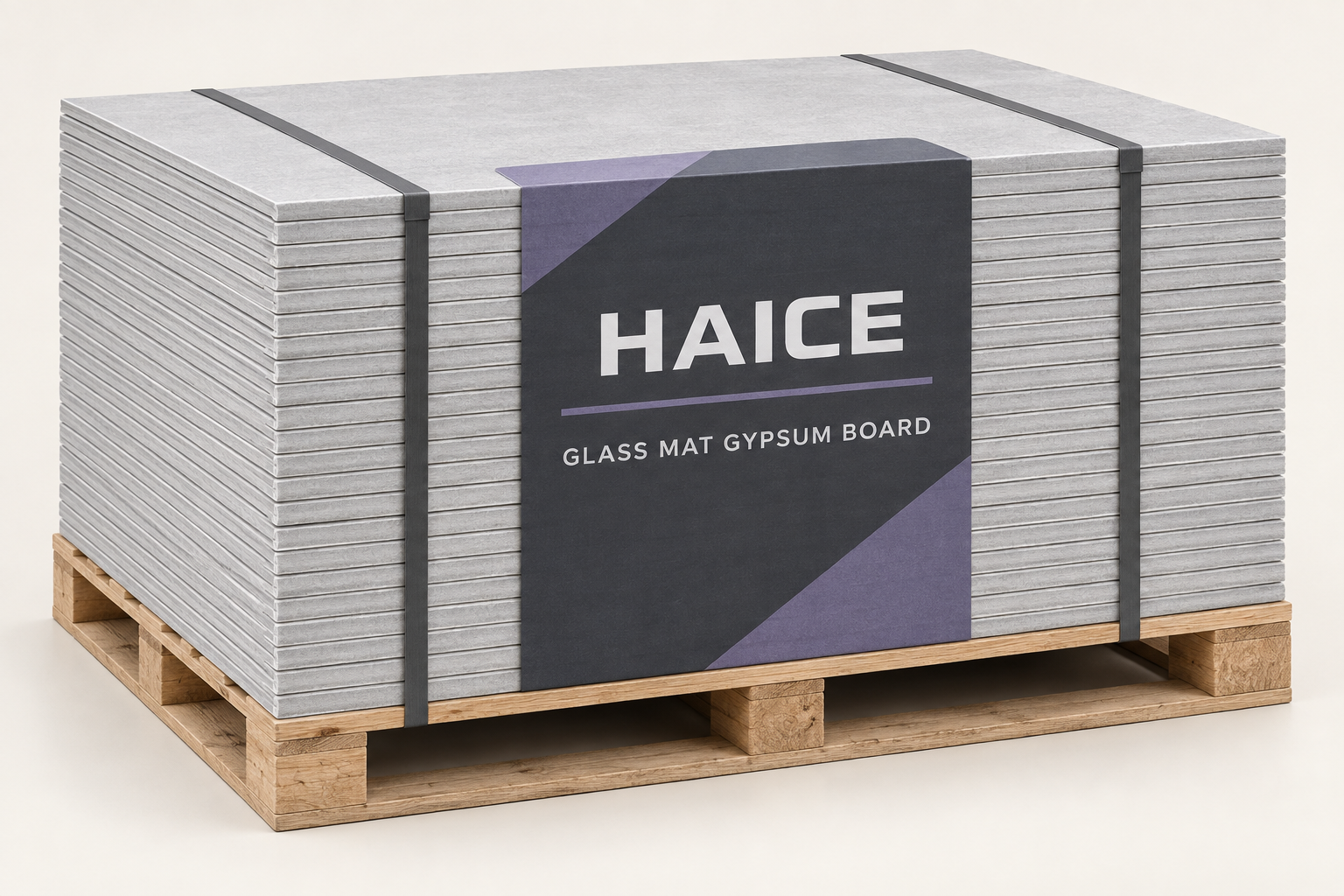

High-Strength Glass-Fiber Faced Board
A reinforced gypsum board faced with high-strength glass-fiber fabric, available in standard, fire-resistant and all-purpose moisture-resistant versions.
Product advantages
High-strength glass-fiber fabric facing
Fire-resistant fiber reinforced core
High density, impact and screw-holding performance
All-purpose version adds water and weather resistance
Reference specification
Model and technical data
Specifications, packing and standards are grouped for direct buyer review
Reference format
2400 / 2440 × 1200 / 1220 mm
Thickness
12 / 16 mm
12 mm breaking load
≥610 / 1046 / 1085 N by variant
12 mm shear force
≥400 / 1150 / 1160 N by variant
Water absorption
≤7% for standard and all-purpose reference variants
Radioactivity index
IRa 0; external index 0.1
Standards and documents
Q/0900 TTH009-2021A1 reaction-to-fire classification
Confirm before ordering
- Application, installation area and target performance
- Length, width, thickness, edge or profile section
- Quantity, mixed-loading plan and destination port
- Packing language, shipping marks, labels and required test reports
Performance values are manufacturer reference data for the Taishan high-strength glass-fiber faced series; variant-specific reports govern the order.
Typical applications
High-wall partitions
Transport hubs
Commercial complexes
Large public interiors
Product characteristics
High-strength glass-fiber fabric facing
Fire-resistant fiber reinforced core
High density, impact and screw-holding performance
All-purpose version adds water and weather resistance
Project inquiry
Share the product, quantity and destination port.
